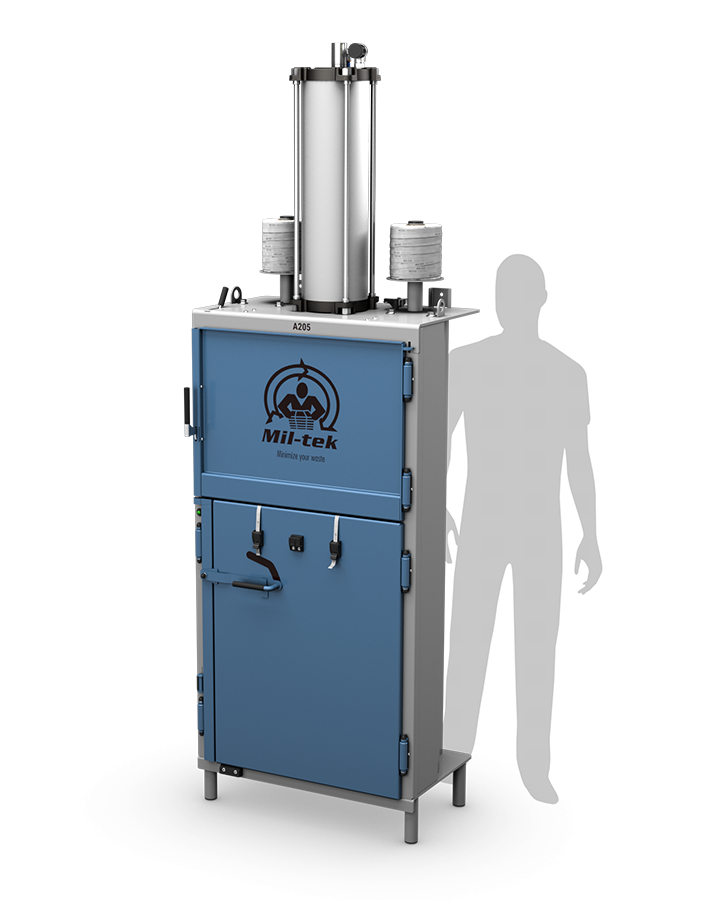

A205 Cardboard & Plastic Baler

A205 Cardboard & Plastic Baler

The A205 is our quickest and most adaptable baler, thanks to its unique pneumatic technology and compact design.

  • Bale 50 kg cardboard & 120 kg plastic
  • Double-acting cylinder with ECODrive
  • Floorspace footprint of just 0.45m²
  • Worlds’ fastest pressing cycle
  • Optimal working height
  • EN16500 as standard
  • Adjustable bale size
pneumatic-air-power-badge cardboard-badge plastic-badge

Simply the most versatile, small footprint pneumatic baler ever. The A205 boasts a deeper pressing chamber than the A102 with the same small floorspace footprint.

pneumatic-air-power-badge cardboard-badge plastic-badge

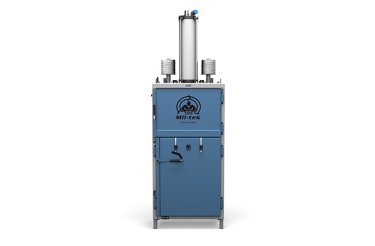

A205 baler for cardboard and plastic

The A205 baler is an advanced model in the Mil-tek pneumatic balers series. It uses a cylinder to press and release the pressing plate using pressurised air.

Since the A205 is completely air-powered, it doesn’t make a racket and doesn’t pollute the environment with hydraulic oil.

Small footprint, large bales

Although it has a smaller footprint (0.45 m²), the A205 is capable of producing bales of up to 50 kg of cardboard and 120 kg of plastic. This is due to its longer pressing cylinder and deeper chamber compared to the A102.

In large facilities, the A205 can be easily connected to the airline, and in smaller ones, it fits snugly into the available space.

See our whole range of cardboard balers.

Technical specifications

Degree of compaction

85-90%

Cardboard bale

Plastic bale

Pressing cycle

< 50 kg

< 120 kg

6-10 sec.

Bale Size

Height

880-1000 mm

Width

655 mm

Depth

450 mm

Banding

13 mm (#999011)

Door Opening

Height

505 mm

Width

655 mm

Depth

415 mm

Machine Size

Height

2462 mm

Width

832 mm

Depth

541 mm

Weight

275 kg

Noise

Noise Level

< 70 db (A)

Pressure

Pressing force at 8 bars

2500 kg

Approvals

Certifications

CE, EN16500, UKCA

A205 Cardboard & Plastic Baler

Download Product Sheet

Problems with dust build-up?

This baler is available with dust extraction!

baler-with-dust-extraction
