A406 Cardboard & Plastic Baler

A406 Cardboard & Plastic Baler

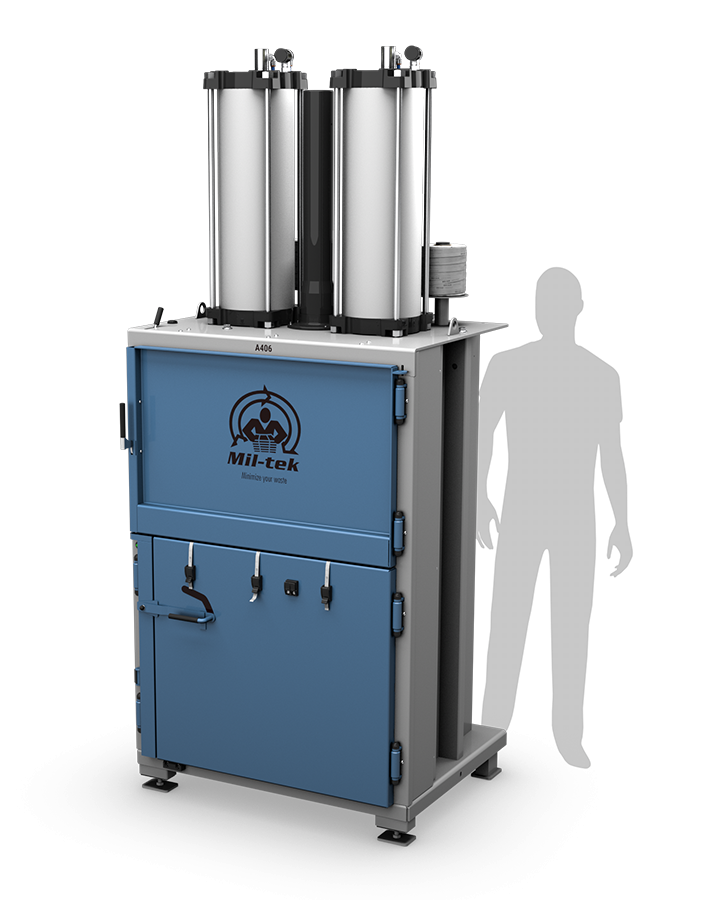

Powerful pneumatic pressing capabilities with a very short pressing cycle of about 15 seconds and a footprint of just 1 m². Connecting directly to an existing air supply, the third generation A406 cardboard and plastic baler achieves unsurpassed efficiency.

  • Bale 175 kg cardboard & and 225 kg plastic
  • Bale-out indicator & auto bale-out function
  • Double-acting cylinder with ECODrive
  • Wide chamber for larger materials
  • Adjustable bale size
  • 1.0m2 footprint
pneumatic-air-power-badge cardboard-badge plastic-badge

Covering a floor space footprint of just 1m², the A406 compresses with 8 tonnes of force in a super-fast pressing cycle of less than 15 seconds.

pneumatic-air-power-badge cardboard-badge plastic-badge

With an impressively short pressing cycle of less than 15 seconds, the A406 compresses with 8 tonnes of force while covering a floor space footprint of just 1m².

Featuring dual, double-cycling cylinders that enhance pressing cycle speed and force, the A406 baler is the third generation of pneumatic balers from Mil-tek. The pressing plate is locked in place to further crush the material while the patented ECO-Drive technology efficiently distributes power to it on the downward cycle. When released, the pressing plate is returned using compressed air.

The A406’s operation on compressed air eliminates the need for hydraulic oil and eliminates any potential for contamination.

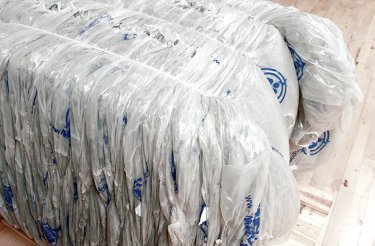

The A406 has a spacious pressing chamber that can accommodate big plastic bags and boxes, and it is also adaptable to other recyclable materials, such as compact plastic (225 kg bales) and cardboard (175 kg bales). All of Mil-tek’s machines come equipped with EN16500 features, and the A406’s two-handed bale-out mechanism is both simple and safe.

See more cardboard balers.

Efficiency in the workshop

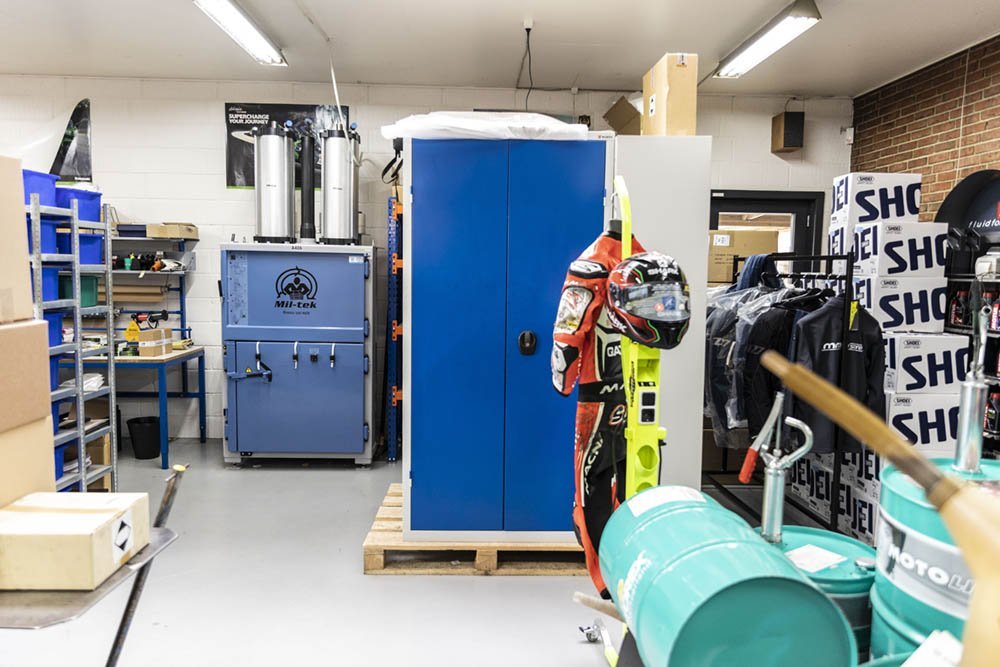

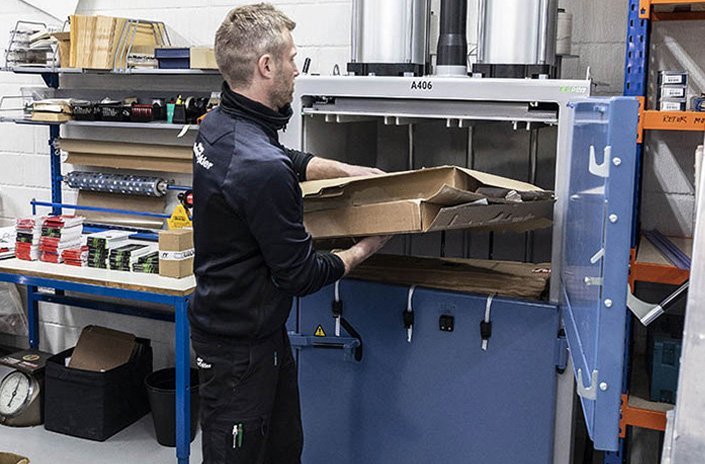

At Skjern Motor Cycles, keeping things nice and tidy is very important, both in the store and the workshop.

In a busy environment, it´s important for the shop owner that his mechanics have room to work, and that everything is placed close to where it is used.

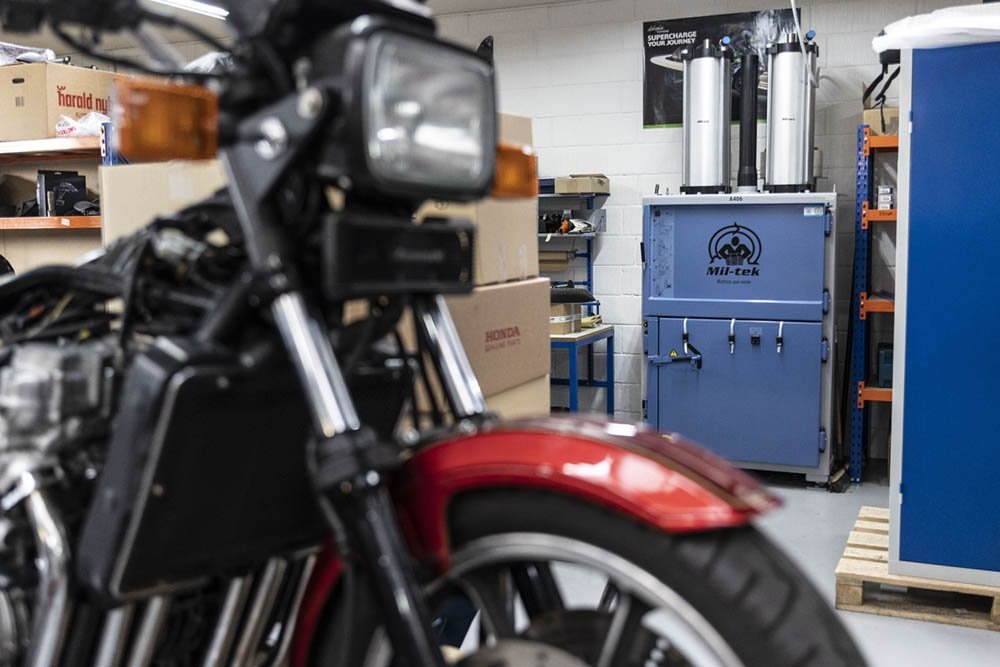

The A406 cardboard baler is now an integrated part of the workshop. It solves sevelral challenges that where a headache in the past.

Watch this video and learn more about efficiency in the workshop.

Technical specifications

Degree of compaction

85-90%

Cardboard Bale

Plastic Bale

Pressing cycle

< 175 kg

< 225 kg

15-25 sec.

Bale Size

Height

760-880 mm

Width

890 mm

Depth

735 mm

Banding

13 mm (#999011)

Door Opening

Height

570 mm

Width

890 mm

Depth

700 mm

Machine Size

Height

2530 mm

Width

1090 mm

Depth

941 mm

Weight

675 kg

Noise

Noise Level

< 70 db (A)

Pressure

Pressing force at 8 bars

8000 kg

Approvals

Certifications

CE, EN16500, UKCA

A406 Cardboard & Plastic Baler

Download Product Sheet

Problems with dust build-up?

This baler is available with dust extraction!
