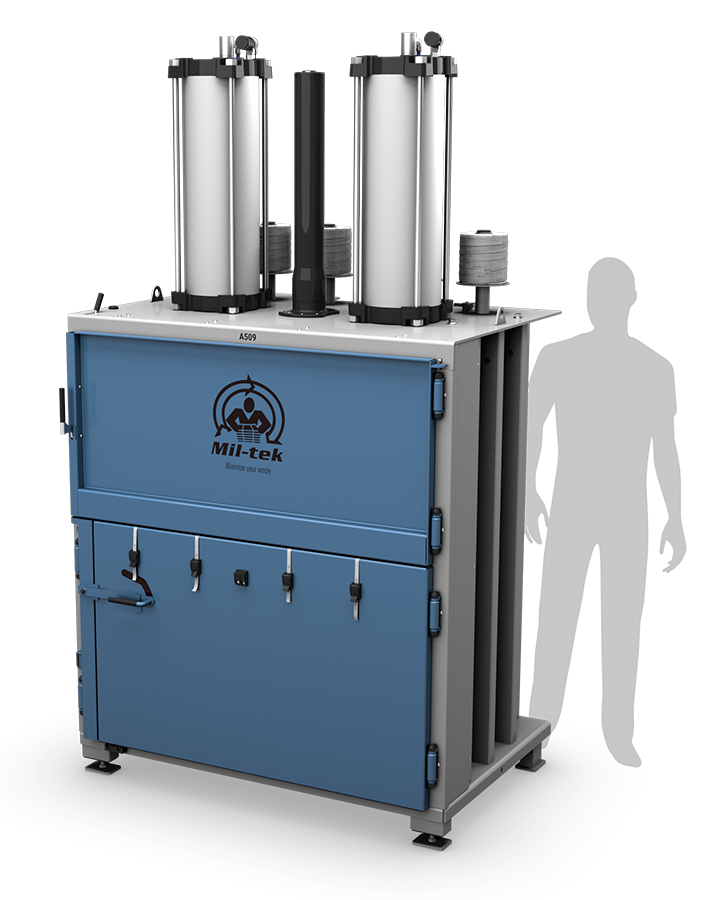

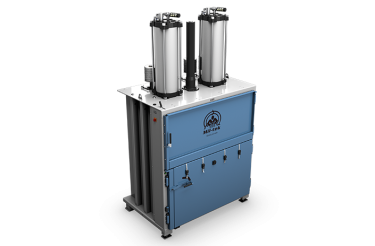

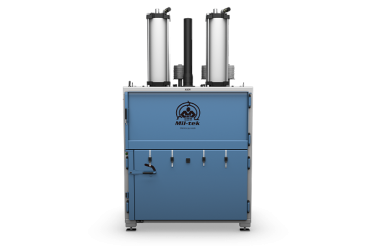

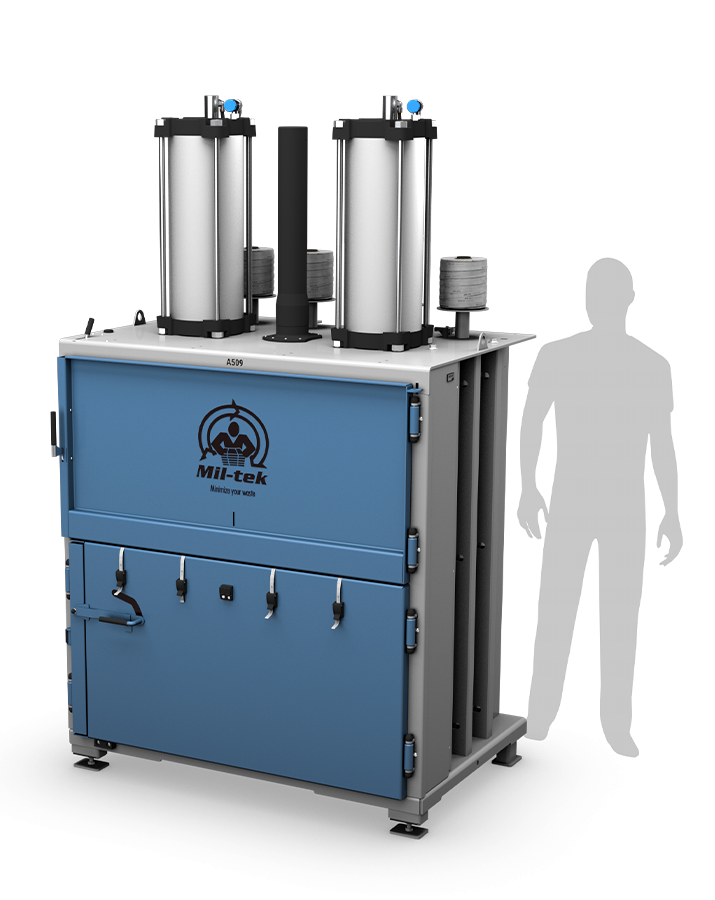

A509 Cardboard & Plastic Baler

A509 Cardboard & Plastic Baler

Powerful pneumatic pressing at lightning speed in a compact 1.5m² design. The A509 is a powerful and fast baler for plastic and cardboard that is ideal for heavy-duty applications.

  • Bale 225 kg cardboard & and 300 kg plastic
  • Dual, double-acting cylinders with ECODrive
  • Bale-out indicator & auto bale-out function
  • Heavy-duty baler for large waste volumes
  • Adjustable bale size
  • 1.5m2 footprint
pneumatic-air-power-badge cardboard-badge plastic-badge

The A509 is a compact heavy-duty baler that packs 8 tonnes of force into its tiny 1.5m² footprint and has an extremely quick pressing cycle of under 15 seconds.

pneumatic-air-power-badge cardboard-badge plastic-badge

The A509’s massive pressing chamber and broad door allow it to process enormous amounts of heavy waste, and it is adaptable to various recyclable materials, including compact plastic (300 kg bales), cardboard (225 kg bales), and others.

For all pneumatic machinery manufactured by Mil-tek. With its easy-to-use two-handed bale-out mechanism and standard EN16500 features, the A509 is a great choice.

The third-generation Mil-tek pneumatic baler, the A509, uses compressed air to push and release the plate using two heavy-duty double-acting cylinders.

The A509 may be easily connected to an existing air supply because it runs on compressed air. This provides an efficient power source that does not contain hydraulic oil and is therefore free of contamination risks.

See more cardboard balers.

Technical specifications

Degree of compaction

85-90%

Carboard Bale

Plastic Bale

Pressing cycle

< 225 kg

< 300 kg

15-25 sec.

Bale Size

Height

760-880 mm

Width

1250 mm

Depth

835 mm

Banding

19 mm (#999021)

Door Opening

Height

570 mm

Width

1250 mm

Depth

800 mm

Machine Size

Height

2530 mm

Width

1450 mm

Depth

1040 mm

Weight

920 kg

Noise

Noise Level

< 70 db (A)

Pressure

Pressing force at 8 bars

8000 kg

Approvals

Certifications

CE, EN16500, UKCA

A509 Cardboard & Plastic Baler

Download Product Sheet

Problems with dust build-up?

This baler is available with dust extraction!

baler-with-dust-extraction
